Recycled Yarn Jelly Backlit Textile GAA531

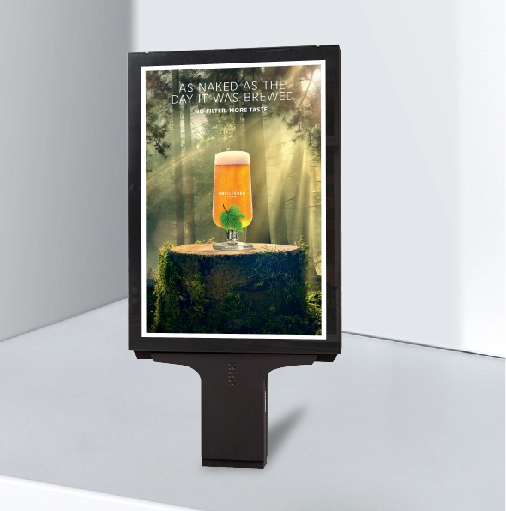

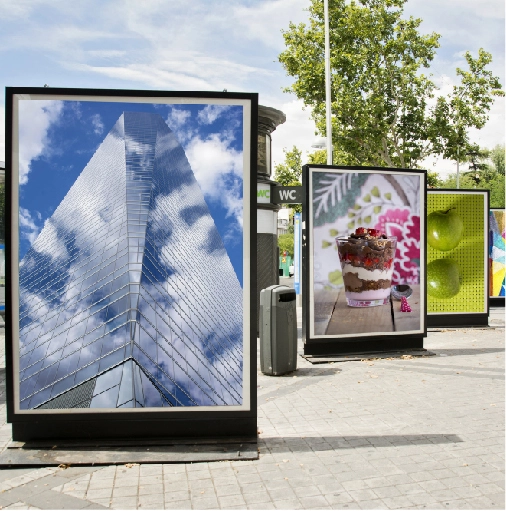

Recycled Yarn Jelly Backlit Textile GAA531, a high-quality fabric material designed for a variety of applications, including LED light boxes, frame systems, pop-up tents, and SEG. Made from 100% polyester using 150D*2X150D*2 woven yarn construction, this fabric provides superior durability. It weighs 175±10gsm and has a thickness of 240±30μm, offering an adequate opacity of 80±5 and a whiteness value of 125±10. The color value of L*: 90.0±2.0; a*: 5.0±2.0; b*: -10.0±2.0. The Milky Backlit Textile GAA531 is available in a width of 3.20 m, and lengths of 50 m or 100 m. This fabric is an excellent choice for creating eye-catching LED displays.

CONTACT NOW

Specification

Specifications of Recycled Yarn Jelly Backlit Textile GAA531

Base Material100% Recycled PolyesterDIN 60001, ASTM D7641
Yarn150D*2X150D*2DIN EN 2060, ASTM D1907
Weave MethodWoven---
Weight175±10gsmISO536
Thickness240±30μmISO534
Opacity80±5ISO2471
Whiteness125±10ISO11475
ColorL*: 90.0±2.0; a*: 5.0±2.0; b*: -10.0±2.0---
Gloss[60°]3±2---
Flame ResistanceDIN 4102-1 B1, EN13501-1DIN 4102-1 B1, EN13501-1


Size

Milky Backlit Textile GAA531 Size
Width3.20 mStandardDIN EN ISO 3759, ASTM D751-2006
Length50 m/100 mStandardDIN EN ISO 3759, ASTM D751-2006


Compatible Inks

Compatible Inks
UV
