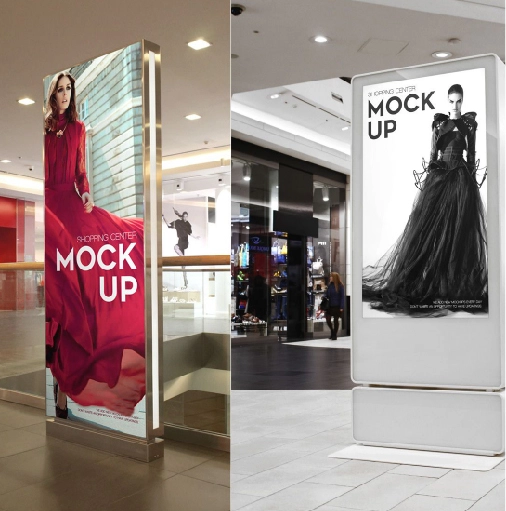

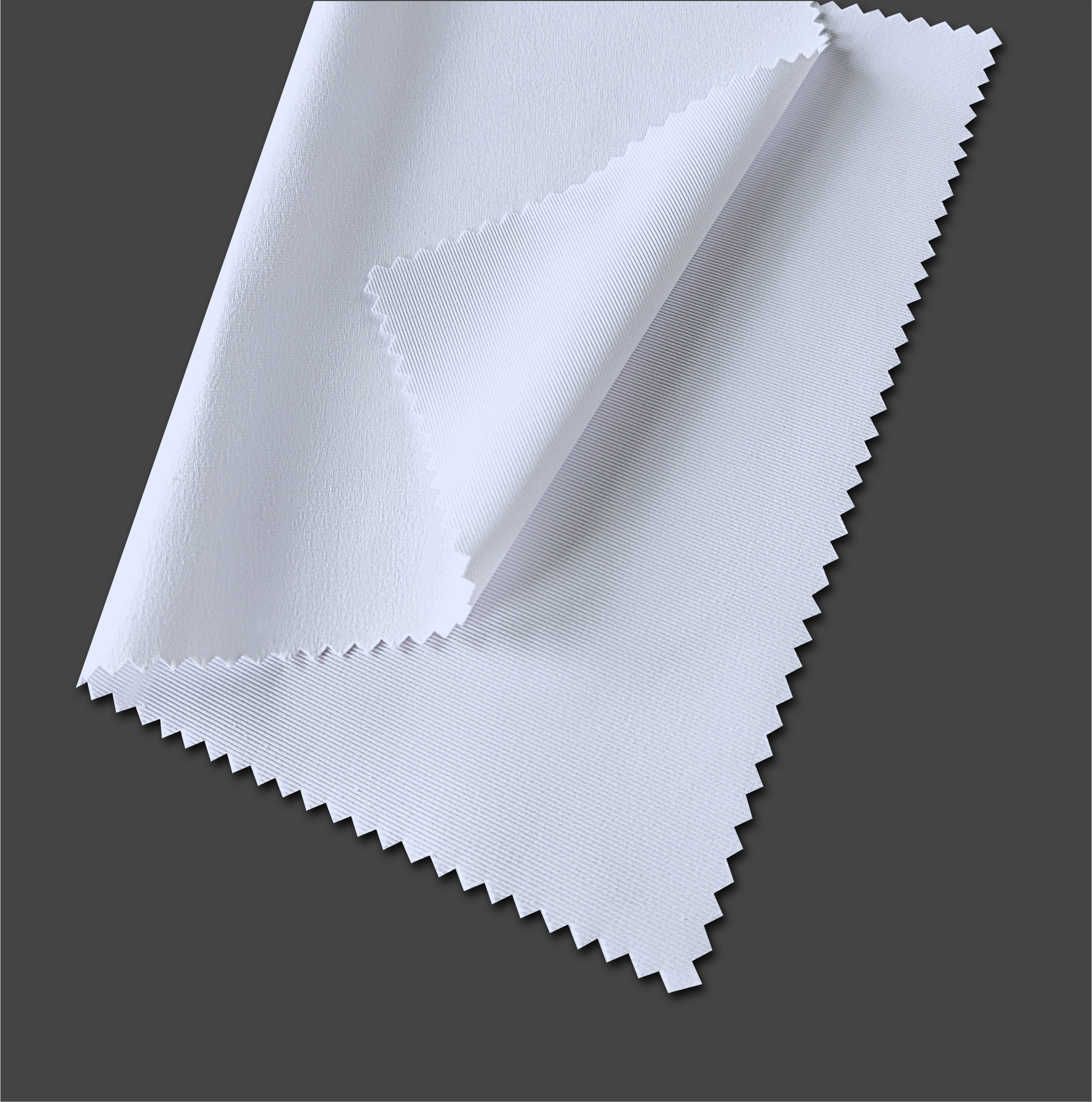

Super Smooth Knitted Backlit Fabric AA572, an exceptional fabric material designed for backlit applications such as LED light boxes, backdrops, pop-up displays, and SEG. Made from 100% polyester using a warp-knitted two-bar construction, this fabric offers superior durability. It has a weight of 260±10gsm and a thickness of 540±50μm, providing excellent opacity of 90±5 and a whiteness value of 165±10. The fabric features a color value of L: 90.5±2.0; a: 9.0±2.0; b: -20.0±2.0. The Super Smooth Knitted Backlt Fabric AA572 is available in width options of 1.60 m, 2.60 m, and 3.20 m, with lengths of 50 m or 100 m. This fabric maintains elasticity of 4%±2%, has a shrinkage rate of ≤2%, and requires a fixation temperature of 190-200℃ for 45s with a yellowing temperature of ≥210℃.
| Base Material | 100% Polyester | DIN 60001, ASTM D7641 |
| Yarn | 60D*40D | DIN EN 2060, ASTM D1907 |
| Weave Method | Warp-knitted 2 bar | --- |
| Weight | 260±10gsm | ISO536 |
| Thickness | 540±50μm | ISO534 |
| Opacity | 90±5 | ISO2471 |
| Whiteness | 165±10 | ISO11475 |
| Color | L: 90.5±2.0; a: 9.0±2.0; b: -20.0±2.0 | --- |
| Gloss[60°] | 4±2 | --- |
| Elasticity | 4%±2% | Length*Width=200*50mm,Speed=100mm/min,Tension=20N |
| Shrinkage | ≤2% | 200°C，45s |
| Yellowing △E | ≤2 | 200°C，45s |
| Flame Resistance | DIN 4102-1 B1, NFPA 701 | DIN 4102-1 B1, NFPA 701 |
| Recommend Fixation Temperature | 190-200℃,45s | --- |
| Yellowing Temperature | ≥210℃ | SUPRKC REX-C400,30s |
Size
| Super Smooth Knitted Backlt Fabric AA572 Size | |||
| Width | 3.20 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
| Length | 50 m/100 m | Standard | DIN EN ISO 3759, ASTM D751-2006 |
Compatible Inks
| Compatible Inks | |
| Dye-sub Transfer | Dye-sub Direct |
