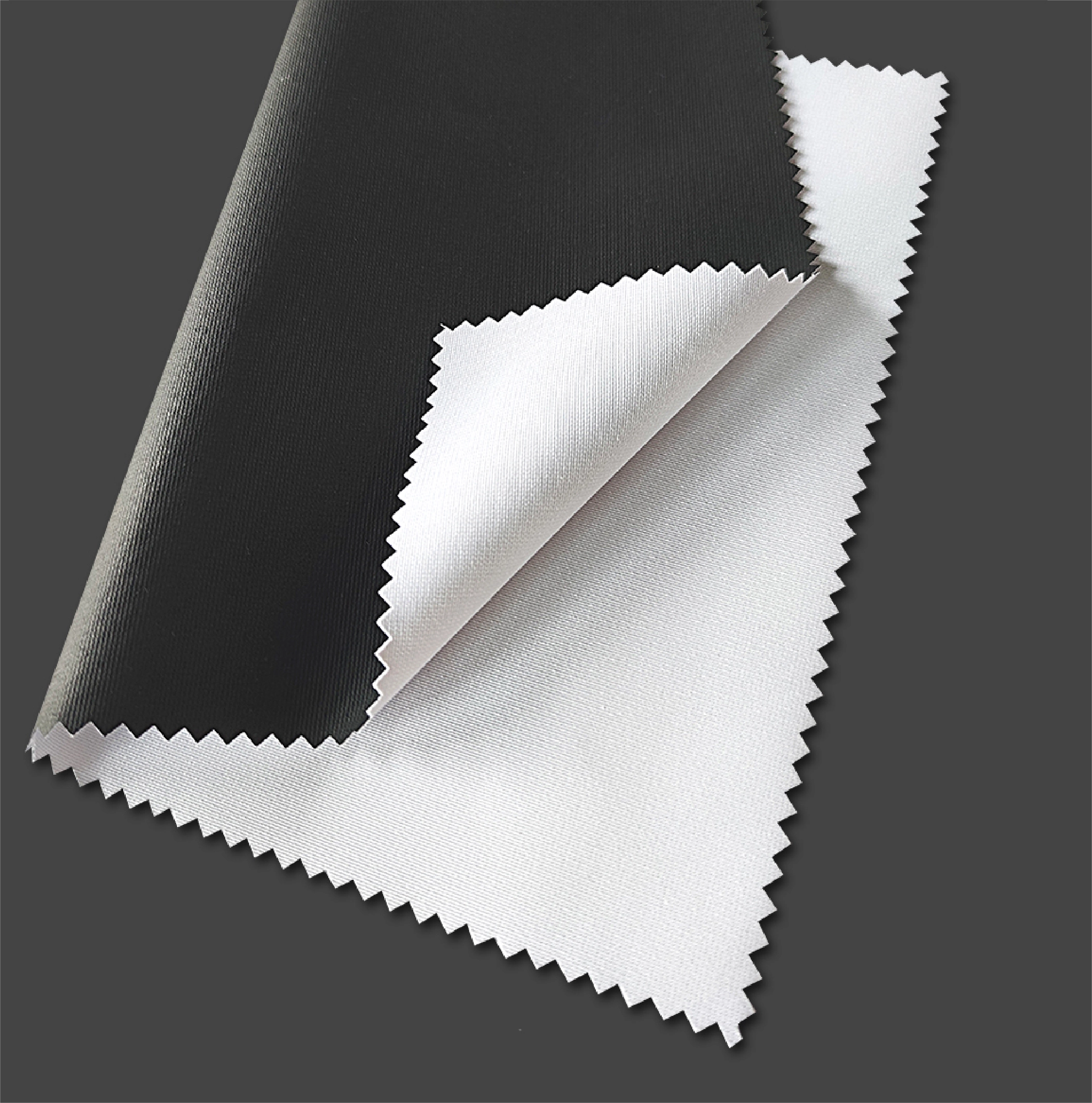

Piano Backdrops Fabric AA701-1

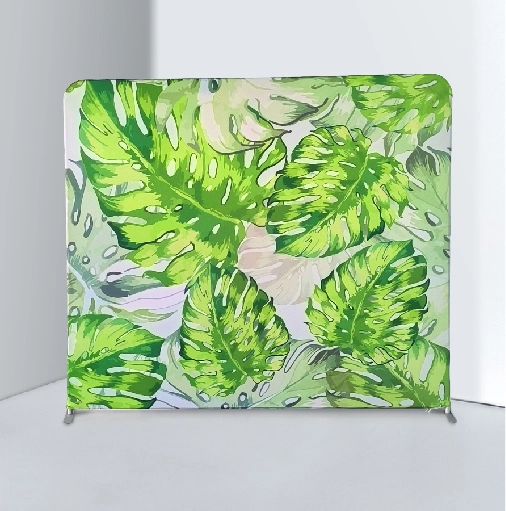

Piano Backdrops Fabric AA701-1 is a premium display fabric used for various applications such as backdrops, pop-ups, frames, exhibition, and display systems. It is made from 100% polyester and processed using the warp-knitted 2 bar method, making it sturdy and durable. With a weight of 250±15gsm and a thickness of 400±40μm, this fabric offers excellent coverage and a fantastic backdrop for your display. It has an opacity of over 99% and a whiteness of 155±10, while its color is L:89.0±2.0; a:7.5±2.0; b:-18.0±2.0, offering a vibrant display for your event. It comes in three sizes: 1.60 m/2.60 m/3.20 m, with a length of 50m. Its recommended fixation temperature is 190-200℃ for 45s, and the yellowing temperature is ≥210℃, making it perfect for high-temperature applications. The fabric has a good elasticity, with the warp having a range of (5±2)%, and the weft having (13±3)%.



Specifications of Piano Backdrops Fabric AA701-1

Base Material100% PolyesterDIN 60001, ASTM D7641
Yarn75D*55DDIN EN 2060, ASTM D1907
Weave MethodWarp-knitted 2 bar---
ColorL:89.0±2.0; a:7.5±2.0; b:-18.0±2.0---
ElasticityWarp:(5±2)% Weft:(13±3)%Length*Width=200*50mm,Speed=100mm/min,Tension=20N
Yellowing △E≤2200°C,45s
Flame ResistanceDIN 4102-1 B1,NFPA 701DIN 4102-1 B1,NFPA 701
Recommend Fixation Temperature190-200℃,45s---
Yellowing Temperature≥210℃SUPRKC REX-C400,30s


Piano Backdrops Fabric AA701-1 Size
Width1.60 m/2.60 m/3.20 mStandardDIN EN ISO 3759, ASTM D751-2006
Length50 mStandardDIN EN ISO 3759, ASTM D751-2006

Compatible Inks

Compatible Inks
Dye-sub TransferDye-sub Direct
